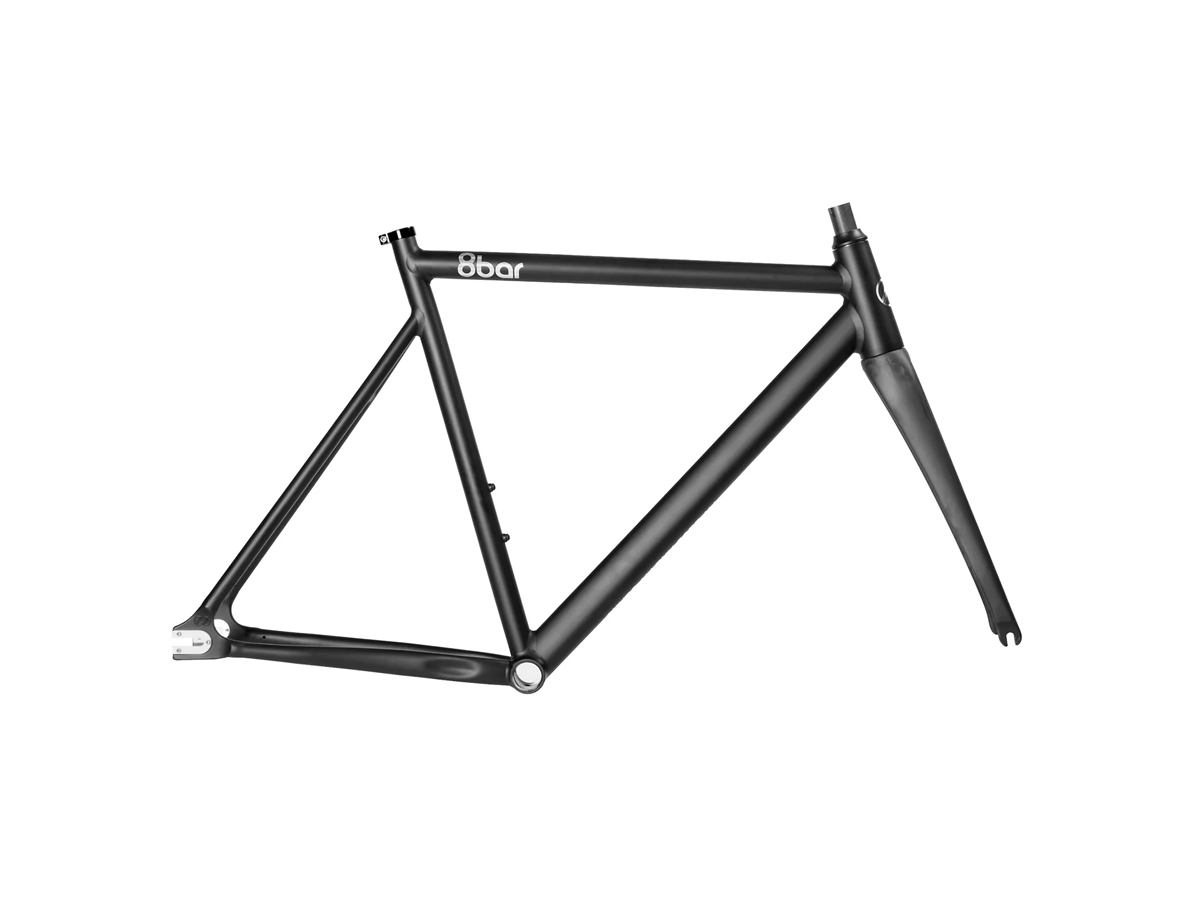

8 Bar KRZBERG v7 Rahmen Set ab 420.-
Von 8 Bar
SFr. 420.00Der KRZBERG v7 Rahmen wurde nach deutscher Ingenieurskunst für schnelles und wendiges Fahren entwickelt. Dank seiner aggressiven und einzigartigen Geometrie ist er perfekt für urbanes Fahren in Städten wie Berlin als auch für schnelle Fixed Gear Rennen geeignet.
Wahlweise mit Alu oder Carbongabel
SPECS
All frames include an A-Head set and a seat collar.
triple butted 6061 aluminium
Aero airplane tubing
Carbon UD fork
fork rake: 45mm
Custom dropouts
100mm front / 120mm rear spacing
Tapered a-head set type / integrated type 1 -1/8″ – 1 -1/2″ / cane creek standard
Seat post: 27.2 mm
Seat collar: 31.8 mm
Bottom bracket: BSA / 68mm (English)
Weight frame: 1.700g
Weight fork: 400g
tire clearance: 30mm
GEOMETRY
X Small | Small | Medium | Large | X-Large | |||
A | seat tube C-T | mm | 480 | 540 | 570 | 600 | 630 |
B | top tube – horizontal | mm | 525 | 535 | 545 | 565 | 590 |
C | head tube | mm | 100 | 120 | 140 | 160 | 180 |
D | chain stay | mm | 395 | 395 | 395 | 395 | 395 |
E | head tube angle | ° | 72 | 73 | 73,5 | 73,5 | 73,5 |
F | seat tube angle | ° | 74,5 | 74,5 | 74,5 | 74,5 | 74,5 |
G | BB drop | mm | 50 | 50 | 50 | 50 | 50 |
H | wheel base | mm | 976 | 978 | 984 | 1004 | 1030 |
I | reach | mm | 396 | 400 | 404 | 419 | 439 |
K | stack | mm | 480 | 502 | 525 | 544 | 563 |
L | standover height | mm | 745 | 775 | 800 | 830 | 855 |
head set size | inch | 1 1/8 – 1 1/2 | 1 1/8 – 1 1/2 | 1 1/8 – 1 1/2 | 1 1/8 – 1 1/2 | 1 1/8 – 1 1/2 | |
seatpost diameter | mm | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
SIZING CHART
X Small | Small | Medium | Large | X-Large | ||
body height (X) | cm | 150-163 | 160-173 | 170-183 | 180-193 | 190-203 |
inside leg measurement (Y) | cm | 64-81 | 75-84 | 78-87 | 81-90 | 84-95 |
saddle height (Z) | cm | 58-72 | 66-75 | 69-78 | 72-81 | 75-86 |
X Small | Small | Medium | Large | X-Large | ||
body height (X) | inch | 4’11” – 5’4” | 5’3” – 5’8” | 5’7” – 6’1” | 5’11” – 6’4” | 6’3” – 6’8” |
inside leg measurement (Y) | inch | 25.2 – 31.8 | 29.5 – 33 | 30.7 – 34.3 | 31.8 – 35.4 | 33 – 37.4 |
saddle height (Z) | inch | 22.8 – 28.3 | 25.9 – 29.5 | 27.2 – 30.7 | 28.3 – 31.8 | 29.5 – 33.5 |
