DOSNOVENTA®02 LA / JET BLACK ore Green Frameset

Von Dosnoventa

SFr. 1,050.00

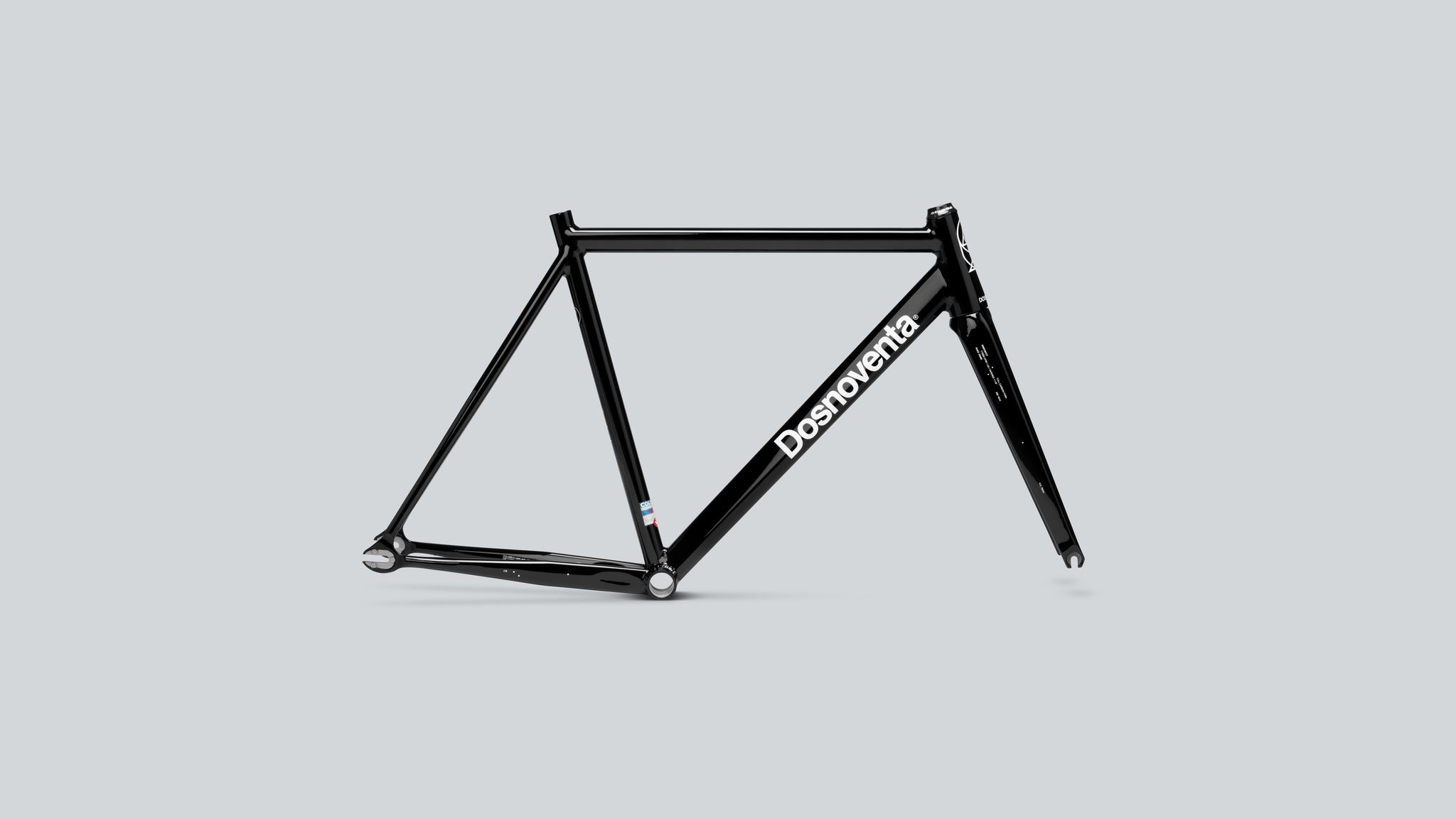

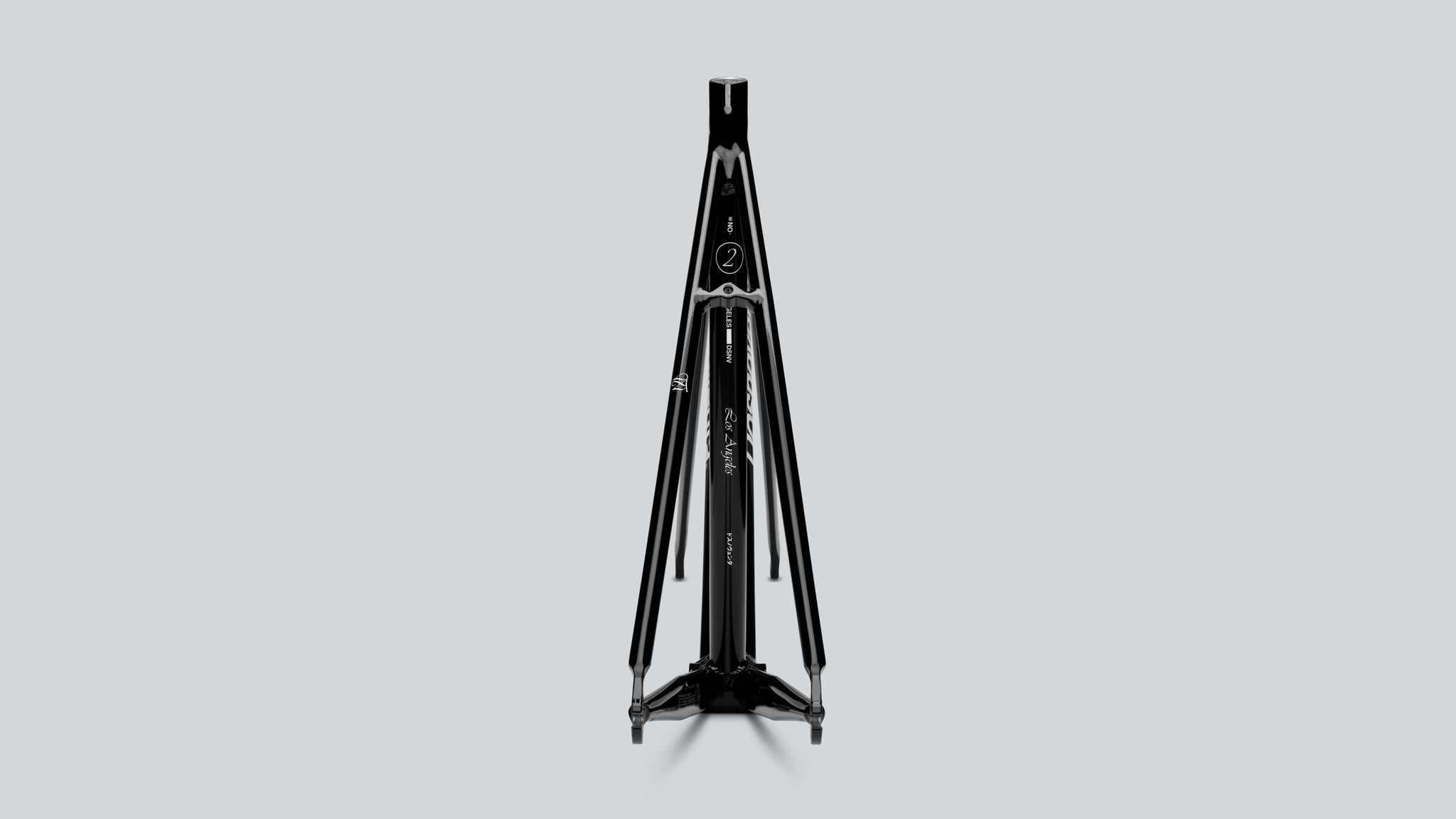

DOSNOVENTA®02 LA / JET BLACK FRAMESET

DESIGNED TO BE A MULTIPURPOSE FRAME, WITH A SHAPE SUITABLE FOR ALL KINDS OF USES, FROM YOUR DAILY COMMUTE TO THE CITY TO MEETING ALL THE MOST DEMANDING RIDER’S NEEDS REGARDING COMPETITIONS AND TRAINING. LIGHTWEIGHT, STIFF, HIGH CLASS AND COMFORT. THE LOS ANGELES IS DOSNOVENTA’S TOP-SELLER.

COLOR JET BLACK GLOSS
FRAME COLUMBUS AIRPLANE TUBING . 7005-T6 TRIPLE BUTTED ALLOY

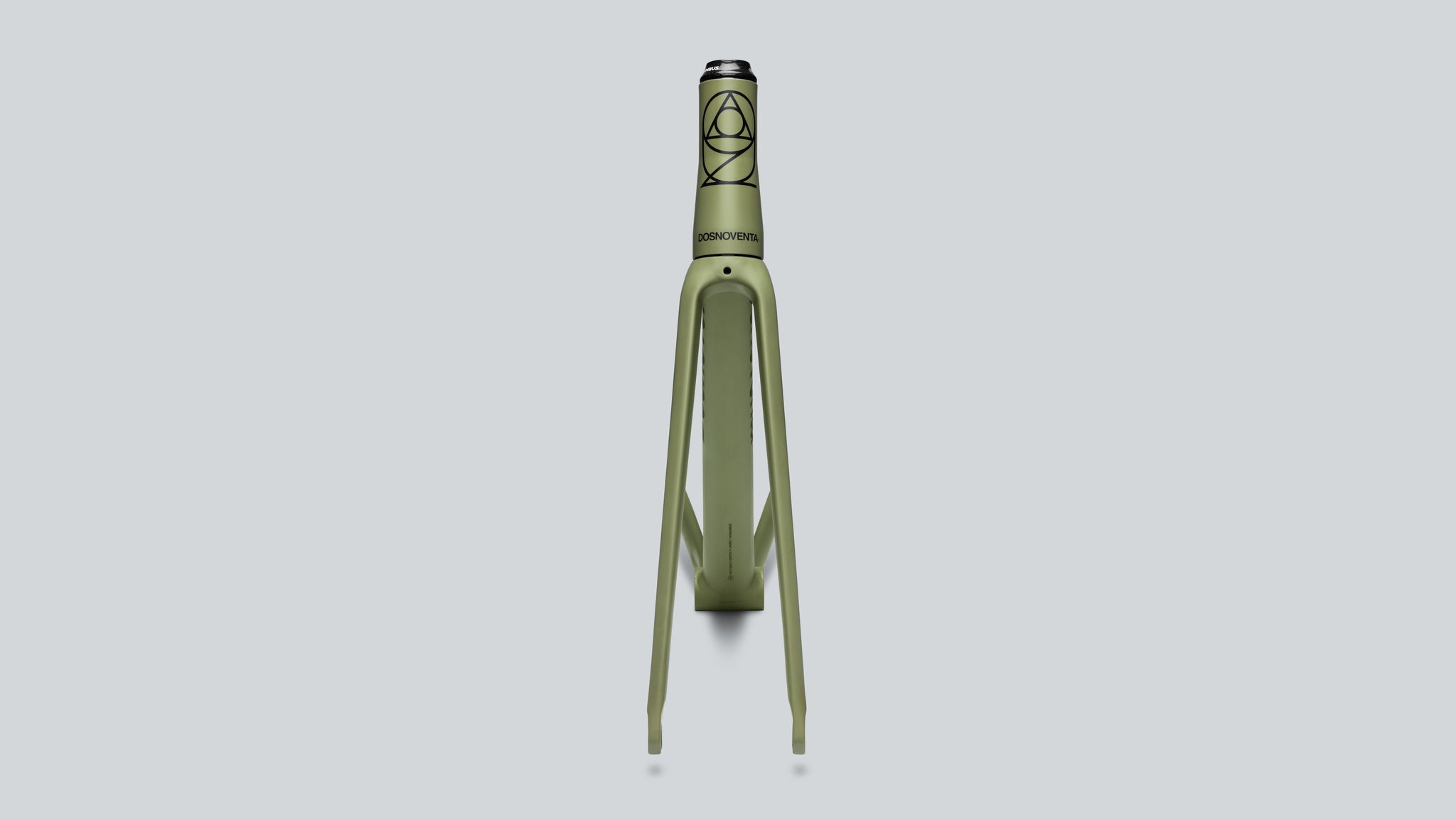

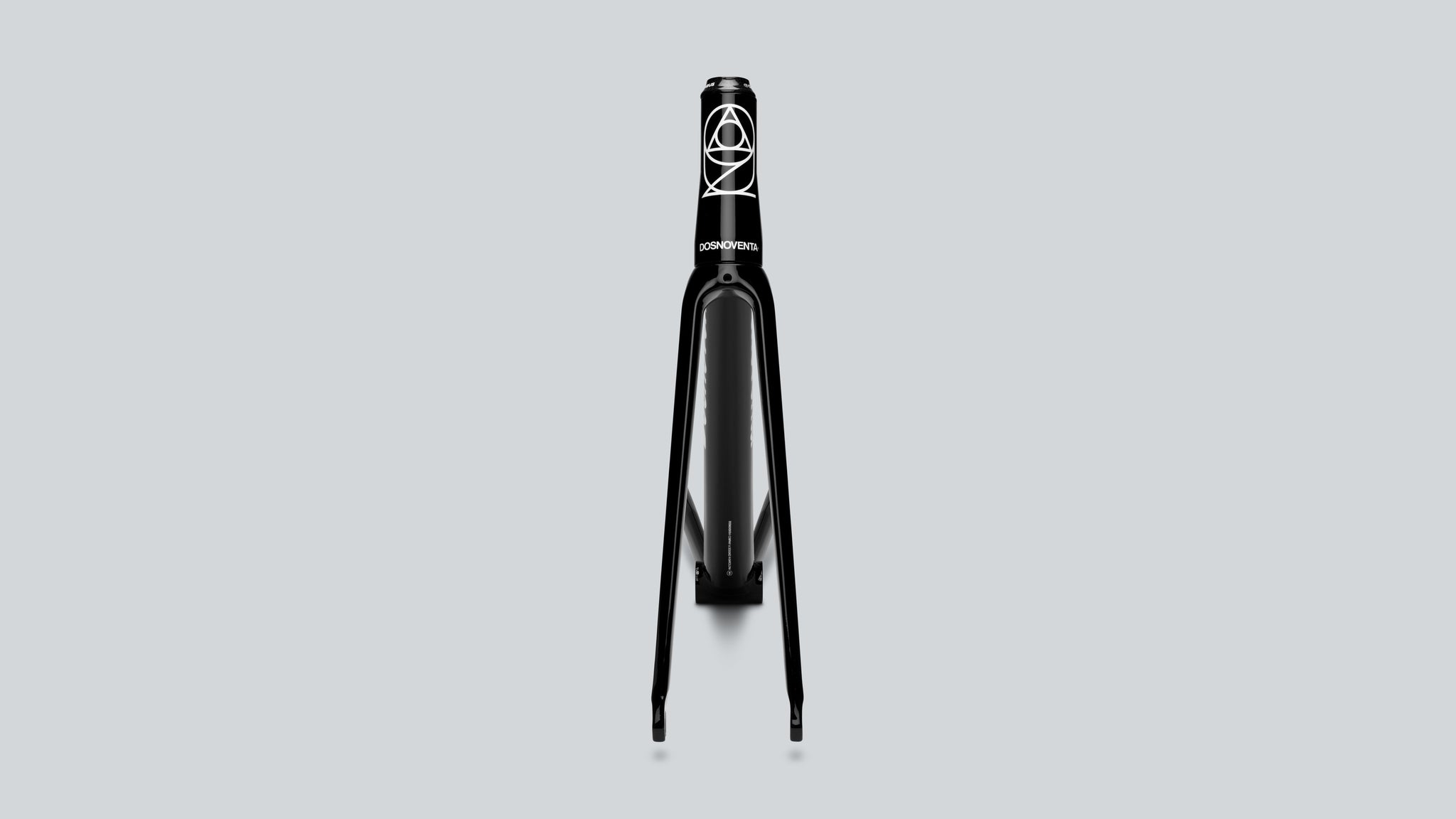

FORK FULL CARBON FORK . TAPERED 1-1/8” . RAKE 45MM . 700X28C MAX
HEADSET (INCLUDED) COLUMBUS COMPASS . 1-1/8" CARBON
BB BSA 68MM
SEAT TUBE Ø 27.2MM
GROUND CLEARANCE 290MM
TIRE CLEARANCE 700X28C MAX
FRAME WEIGHT 1470 GR (M SIZE)
FORK WEIGHT 410 GR



S M L
RIDER HEIGHT 154CM - 170CM 171CM - 182CM 183CM - 192CM
Seat Tube (Center to Center) 460 500 540
Seat Tube (Center to Top) 500 500 500
Head tube length 110 140 180
Effective top tube length 510 535 560
Head tube Angle 73.5 73.5 73.5
Seat tube angle 75 75 75
Stack (mm) 481 515 553
Reach (mm) 389 396 411
BB Drop 41 41 41
Chainstay Length 382 382 382
Bottom Braket 290 290 290
